Overview

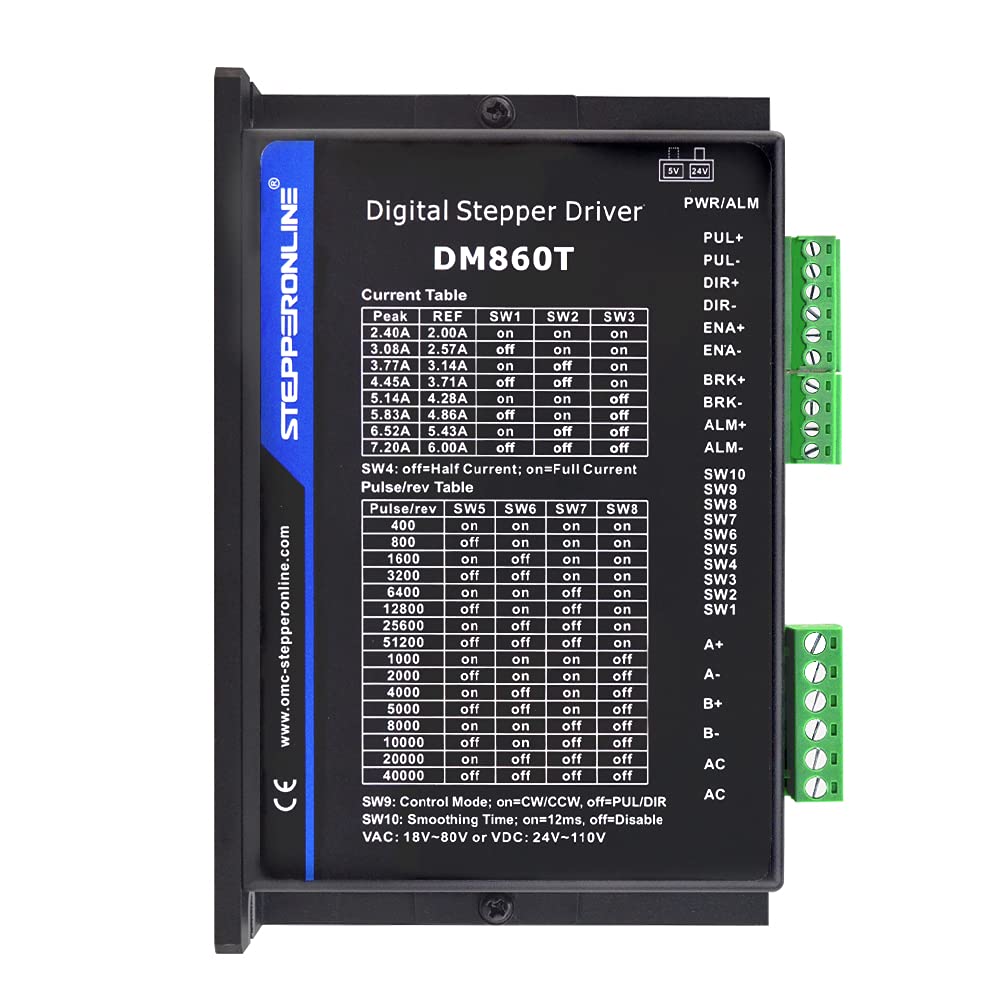

The DM860T is a fully digital stepper driver developed with advanced DSP control algorithm based on the latest motion control technology.
It has achieved a unique level of system smoothness, providing optimal torque and nulls mid-range instability. Its motor auto-identification and parameter auto-configuration feature offers quick setup to optimal modes with different motors.
Compared with traditional analog drives, DM860T can drive a stepper motor at much lower noise, lower heating, and smoother movement. Its unique features make DM860T an ideal choice for high requirement applications.

Features

Step & direction (PUL/DIR) control
Input voltage 18-80VAC or 36-110VDC
Pulse input frequency up to 200 KHz.
16 selectable microstep resolutions from 400 to 40000
8 selectable peak current including 2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A
Soft-start with no “jump” when powered on
