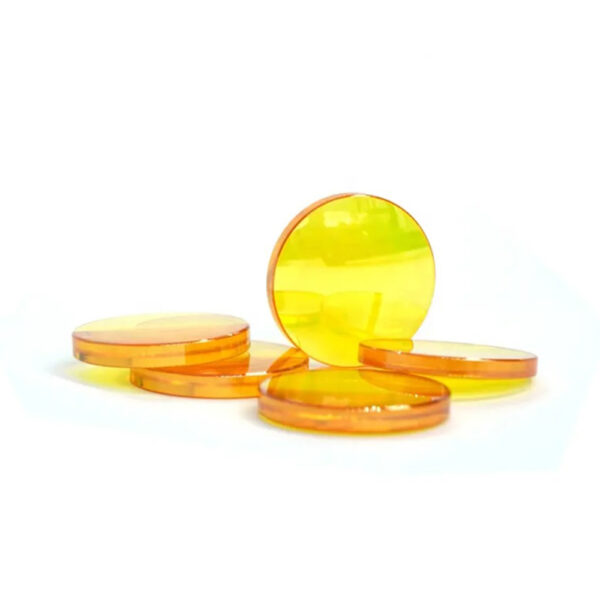

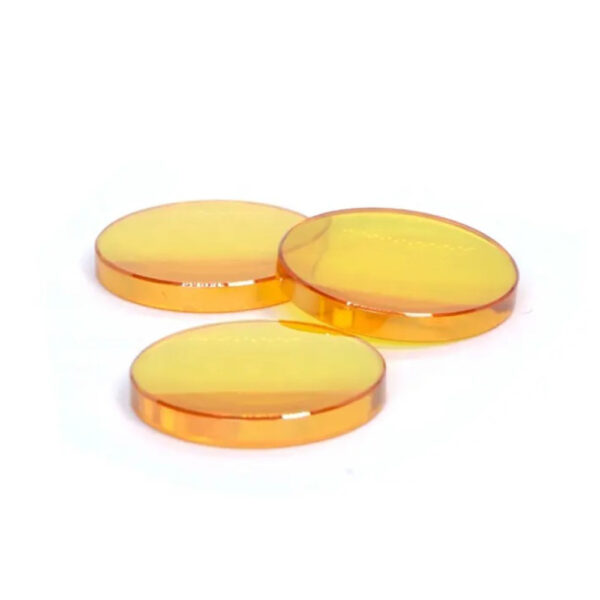

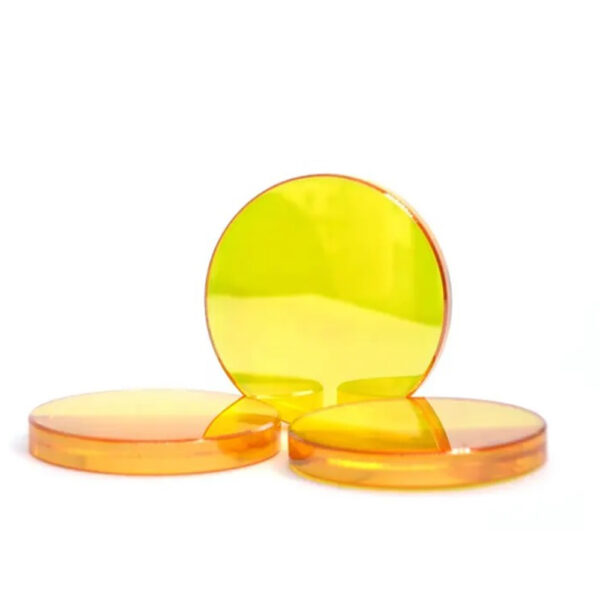

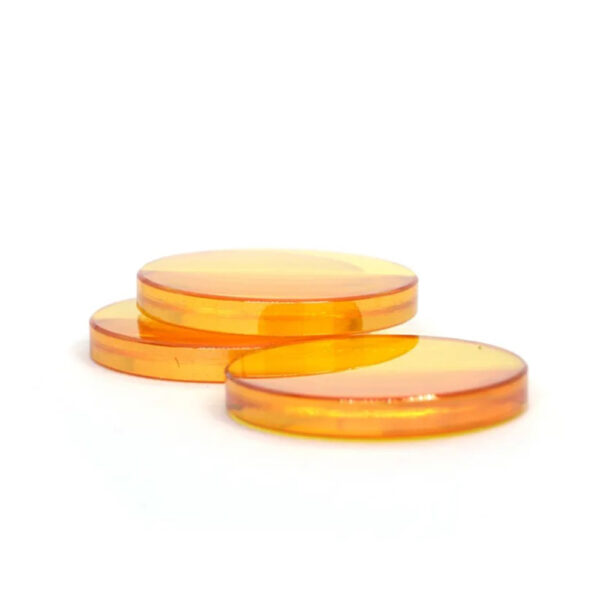

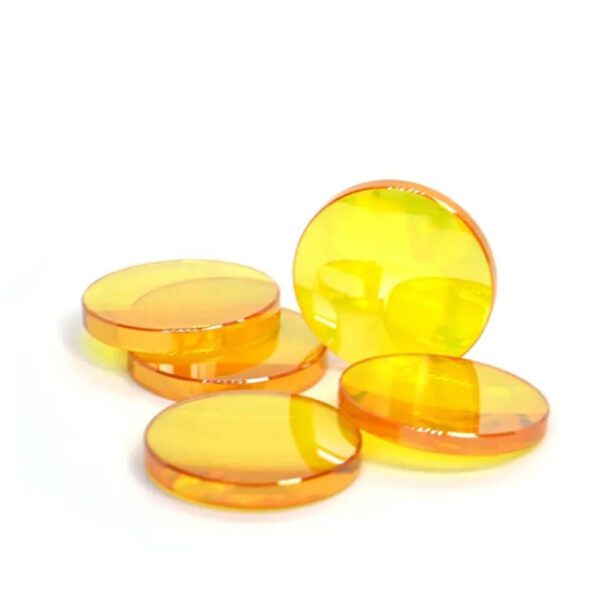

BTHOCING High Precision Optical Lens Dia18/19.05/20mm ZnSe CO2 Laser Focus Lens for Laser Cutting/Engraving Machines
CO2 laser focusing lenses are widely used in laser machining (cutting, drilling, welding, engraving, etc.) and various laser systems. To meet the demand of the market, our company has developed two types of products: Plano convex and meniscus lenses. We have various dimension of plano convex lenses in stock. If you need meniscus lenses, please feel free to inquire with us.
1.Feature of laser focus lens | ||||
It can bear high power and density | ||||
The film is stable | ||||
It is resistant to wipe | ||||
The transmittance is ≥99.5% after plating two-sided anti-reflection films | ||||
2.Specification of laser focus lens | ||||
The products can be designed and processed separately according to the different requirements for focal length, back focal length, lens diameter and diameter of incident light. |
Diameter(mm) | Material | Focal length（mm） | Wavelength (um) | Edge thickness(mm) |
12 | CVD Znse | 10.6 | 2 | |
18 | CVD Znse | 10.6 | 2 | |
19.05 | CVD Znse | 10.6 | 2 | |
20 | CVD Znse | 10.6 | 2 | |
25 | CVD Znse | 10.6 | 3 | |
25.4 | CVD Znse | 10.6 | 4 | |
30 | CVD Znse | 10.6 | 6 | |
38.1 | CVD Znse | 10.6 | 7.8 | |
Customized size can be fabricated according to customer’s drawings and samples, please inquire with us if you are in need | ||||
