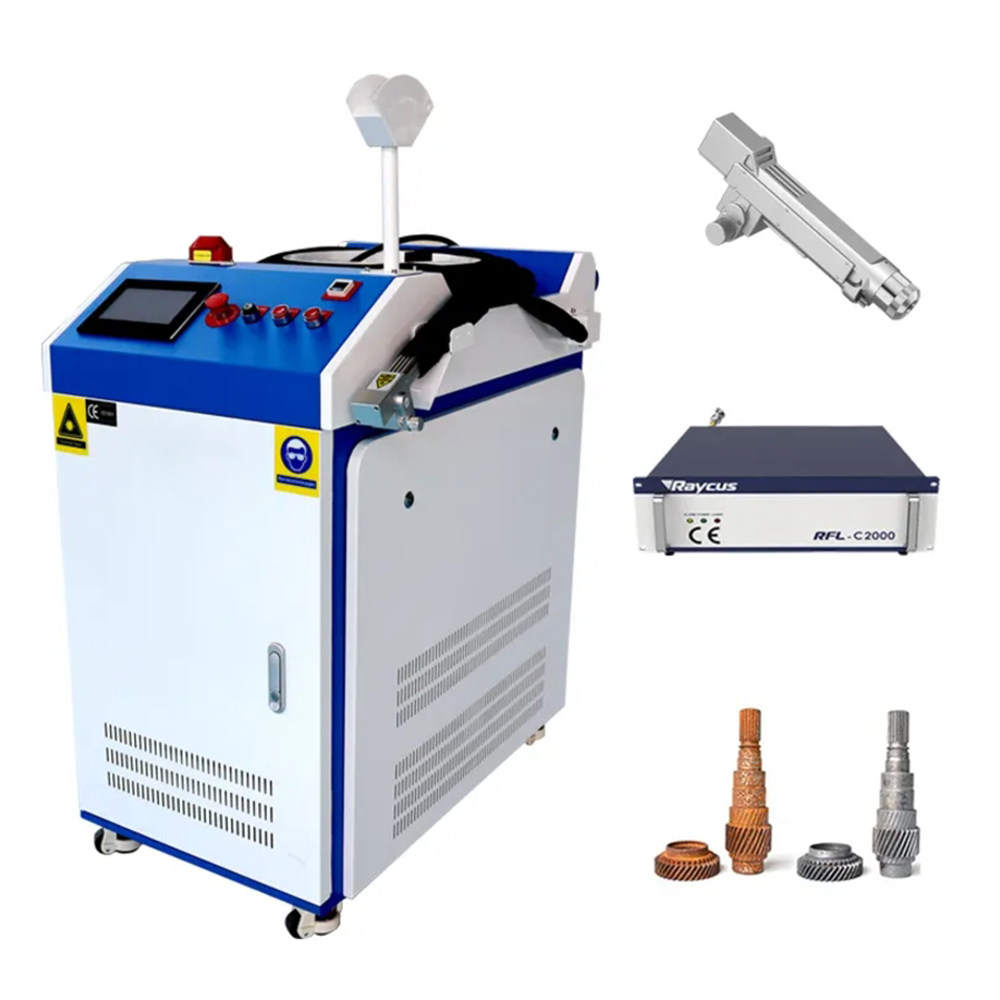

BTHOCING Hot Selling Laser 3 In 1 Cutting Welding Cleaning Machine Mini Laser Welder
BT SERIES Handheld Fiber Laser Welding Machine | ||||
Model | BT-1500E | BT-2000E | BT-3000E | |
Laser model | 1500W | 2000W | 3000W | |
Output power | 1500W | 2000W | 3000W | |
Laser wavelength | 1080±10nm | |||
Working mode | Continuous/Modulated | |||
Powder adjustment range | 10-100% | |||
Fiber core diameter | 25 or 50 | |||
Aim for positioning | Red light | |||
Fiber length | 12m | |||
Welding speed | 0-120mm/s | |||
Applicable thickness | ＜3mm | ＜4mm | ＜6mm | |
Wire feeder | Wire feeding speed 38-600mm/min | |||
Feed diameter | 0.8/1.0/1.2/1.6/2.0mm | |||
Cooling method | Water | |||
Working environment | Temperature 10-40℃,humidity 10-85%,no condensation | |||
Rated power | 3.5KW | 4.5KW | 6KW | |
Operating voltage | 220±20v,AC,AE,PE,50/60HZ | |||
Dimensions | 1150*630*1080mm | |||
Weight | ≈120kg | |||
* PRODUCT FEATURES
1) Integrated design, easy to install and simple to operate; 2) Branded laser source, safe and stable, long service life; 3) High photoelectric conversion efficiency, energy saving and environmental protection; 4) 3 in 1 working mode, wide range of uses; 5) fast welding speed, weld seam beautiful and solid;
6) High working efficiency, effectively reduce labor intensity.
