DIY Fiber Laser Welding Machine
Creating your own fiber laser welder can be a rewarding and cost-effective project. Whether you’re a hobbyist, entrepreneur, or professional, assembling a laser welder allows you to customize the equipment to your specific needs. This guide will walk you through the essential components and considerations for building a complete hand-held laser welding machine, including both water-cooling and air-cooling options.
Table of Contents
- Machine Cover
- Chiller (Only Necessary for Water-Cooling Laser Source)
- Laser Source
- Laser Welding System1）Cost-Effective Option for Water-Cooling Welder2）Advanced Option for Water-Cooling Welder3）Option for Air-Cooling Laser Welder
- Electrical Parts
- Consumable Parts
- Component List and Prices of 1500W Water-Cooled Laser Welding Machine DIY Project
- Welding Parameters for Various Materials1）Carbon Steel2）Aluminum3）Stainless Steel
- Conclusion
1. Machine Cover
The machine cover protects the internal components of your laser welder. Depending on your choice of cooling method, the cover’s design will vary:
- Water-Cooled Laser Welding Machines: Larger covers to accommodate the chiller.
- Air-Cooled Laser Welding Machines: More compact covers since no chiller is required.
Sample Photos:

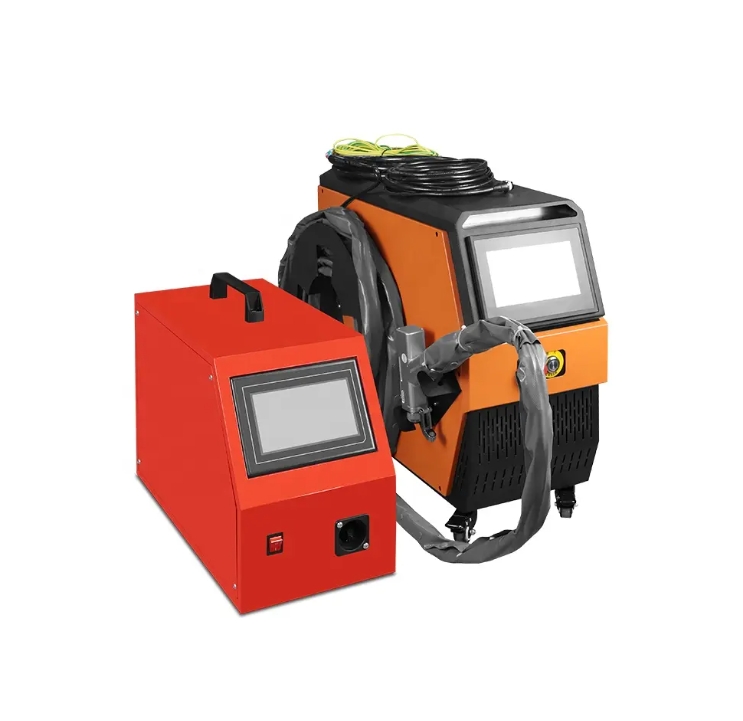

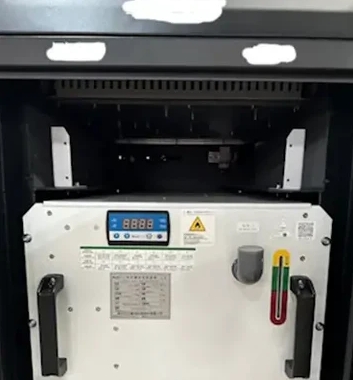

- Water-cooling welder with chiller locked/unlocked

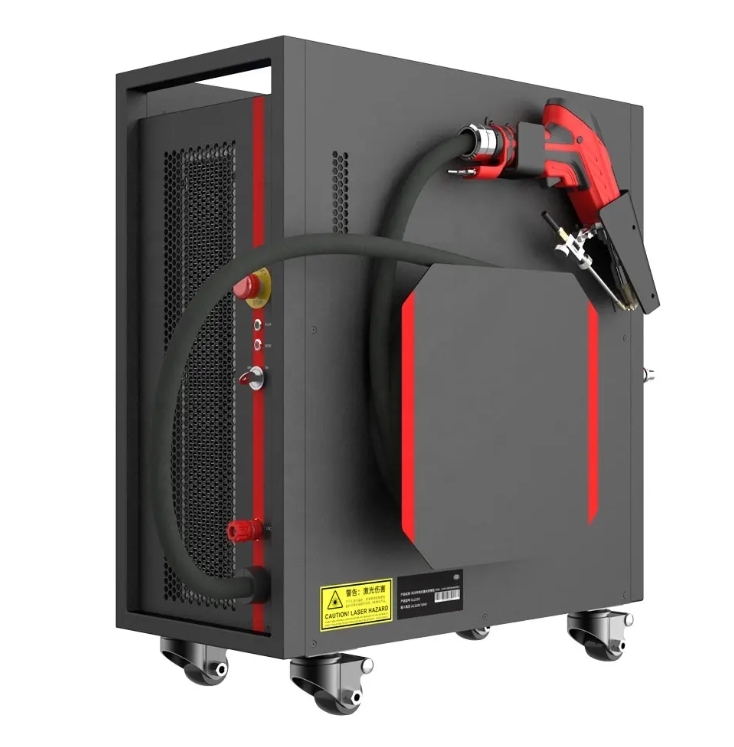

- Air-cooling welder without chiller

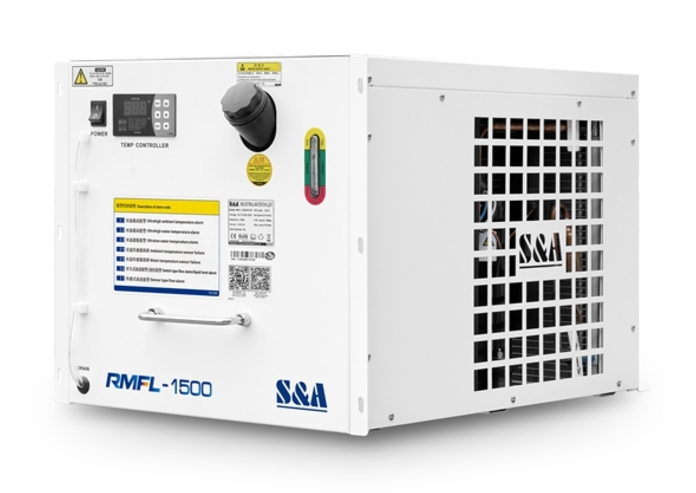

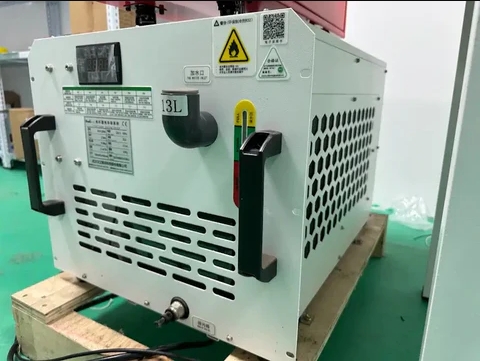

2. Chiller (Only Necessary for Water-Cooling Laser Source)
A chiller is crucial for water-cooled laser sources to maintain optimal operating temperatures. Manufacturers now offer integrated chillers with the machine cover for streamlined design and functionality.
Sample Photo:

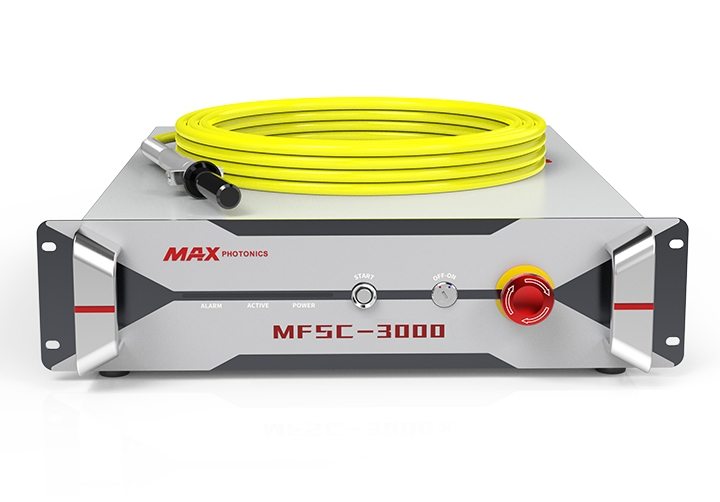

3. Laser Source
- Water-Cooling Laser Source: Ideal for higher power output, typically ranging from 1000W to 3000W.
- Air-Cooling Laser Source: Suitable for lighter applications with power ratings between 800W to 1200W.
Sample Photos:
4. Laser Welding System
There are several options for the laser welding system, depending on your budget and performance requirements:
Cost-Effective Option for Water-Cooling Welder
Raytools BW101-GS (3in1) Laser Welding System:
- Handheld Welding Head: 1 unit
- Handheld Welding Control System: 1 unit
- Raytools Handheld Welding Touch Screen Software: 1 unit
- Switching Power Supply: 1 unit
- Standard Accessories Package: 1 unit
- Motor Cable: 1 unit
- Wire Feeder: 1 unit
- Switching Power Supply Cable Kit: 1 unit

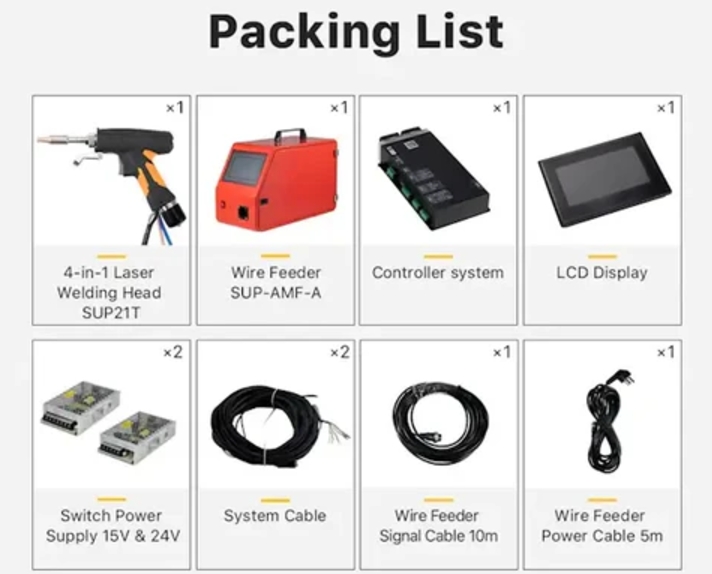

Advanced Option for Water-Cooling Welder
Superlasercut SUP21T (4in1) Laser Welding System:
- Laser Welding Head SUP21T: 1 unit
- Wire Feeder SUP-AMF-A: 1 unit
- Controller System: 1 unit
- LCD Display: 1 unit
- Switch Power Supply 15V & 24V: 2 units
- System Cable: 2 units
- Wire Feeder Signal Cable 10m: 1 unit
- Wire Feeder Power Cable 5m: 1 unit

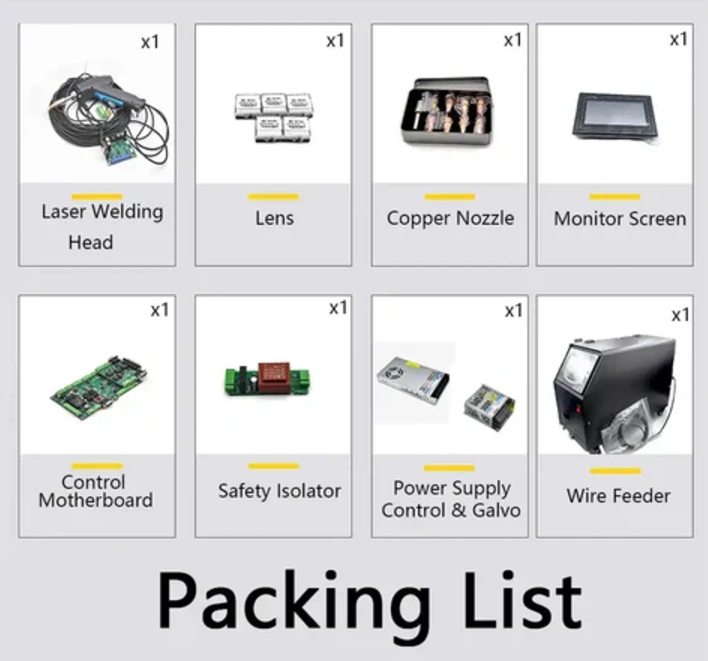

Option for Air-Cooling Laser Welder
- Laser Welding Head: 1 unit
- Wire Feeder: 1 unit
- Controller System: 1 unit
- LCD Display: 1 unit
- Power Supply LM35010A24: 1 unit
- Power Supply LM75-23B24R2-C: 1 unit
- Nozzles: 8 units
- Protective Lens: 5 units
7. Electrical Parts
All the small electrical parts, including the computer, switches, relays, wires, etc., are essential for the proper functioning of your laser welder. You can download the PDF to get all elecrical parts required for DIY a water-cooling fiber laser welder.
Sample Photo:

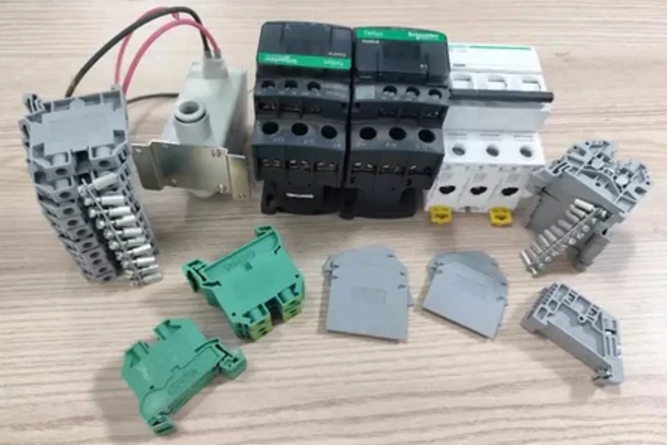

- Electrical components inside a laser welding machine
8. Consumable Parts
To ensure continuous operation, we offer a one-year supply of laser welder consumables, which includes:
- Protective Lens
- Focus Lens
- Seal Ring
- Collimating Lens
- Welding Copper Nozzle
- Wire Feeding Copper Nozzle
- Calibration Tube
- Cutting Copper Nozzle
Sample Photo:

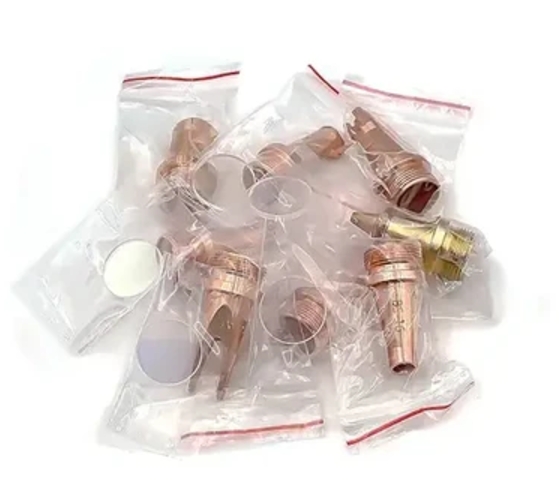

- Various consumable parts
Component List and Prices of 1500W Water-Cooled Laser Welding Machine DIY Project
For those interested in a specific project, here’s a detailed component list and prices for building a 1500W water-cooled laser welding machine:
| Components | Quantity | Unit | Price |
|---|---|---|---|
| BWT Laser Source for Welding 1500W | 1 | unit | US$1,592.00 |
| Laser Welding System SUP 21T (including wire feeder) | 1 | set | US$989.00 |
| S&A Chiller | 1 | unit | US$504.00 |
| Electrical Parts | 1 | set | US$250.00 |
| Air Conditioner (Optional) | 2 | unit | US$0.00 |
| Total | US$3,335.00 |
Welding Parameters for Various Materials
When welding different materials, specific parameters need to be followed to ensure optimal results. Below are the recommended settings for welding carbon steel, aluminum, and stainless steel.
Carbon Steel
| Thickness (mm) | Scanning Speed | Scanning Width (mm) | Peak Power (W) | Duty Cycle | Pulse Frequency | Wire Feeding Speed (cm/s) | Welding Wire |
|---|---|---|---|---|---|---|---|
| 1 | 300 | 3 | 350 | 100 | 2000 | 60 | 1 |
| 2 | 300 | 3 | 700 | 100 | 2000 | 60 | 1.2 |
| 3 | 300 | 3 | 1100 | 100 | 2000 | 60 | 1.2 |
| 4 | 300 | 3 | 1500 | 100 | 2000 | 60 | 1.6 |
| 5 | 220 | 3 | 1800 | 100 | 2000 | 50 | 1.6 |
| 6 | 220 | 3 | 2200 | 100 | 2000 | 50 | 1.6 |
| 8 | 220 | 3 | 3000 | 100 | 2000 | 40 | 2 |
Aluminum
| Thickness (mm) | Scanning Speed | Scanning Width (mm) | Peak Power (W) | Duty Cycle | Pulse Frequency | Wire Feeding Speed (cm/s) | Welding Wire |
|---|---|---|---|---|---|---|---|
| 1 | 300 | 3 | 500 | 100 | 2000 | 60 | ER5356 1.0 |
| 2 | 300 | 3 | 800 | 100 | 2000 | 60 | ER5356 1.2 |
| 3 | 300 | 3 | 1400 | 100 | 2000 | 60 | ER5356 1.2 |
| 4 | 300 | 3 | 1800 | 100 | 2000 | 60 | ER5356 1.6 |
| 5 | 220 | 3 | 2000 | 100 | 2000 | 50 | ER5356 1.6 |
Stainless Steel
| Thickness (mm) | Scanning Speed | Scanning Width (mm) | Peak Power (W) | Duty Cycle | Pulse Frequency | Wire Feeding Speed (cm/s) | Welding Wire |
|---|---|---|---|---|---|---|---|
| 0.5 | 300 | 2 | 260 | 100 | 2000 | 80 | ER304 0.8 |
| 0.8 | 300 | 2 | 300 | 100 | 2000 | 80 | ER304 0.8 |
| 1 | 300 | 3 | 350 | 100 | 2000 | 60 | ER304 1.0 |
| 2 | 300 | 3 | 700 | 100 | 2000 | 60 | ER304 1.0 |
| 3 | 300 | 3 | 1100 | 100 | 2000 | 60 | ER304 1.2 |
| 4 | 300 | 3 | 1500 | 100 | 2000 | 60 | ER304 1.2 |
| 5 | 220 | 3 | 1800 | 100 | 2000 | 50 | ER304 1.6 |
| 6 | 220 | 3 | 2200 | 100 | 2000 | 50 | ER304 1.6 |
| 8 | 220 | 3 | 3000 | 100 | 2000 | 40 | ER304 2.0 |
Conclusion
Building your own DIY fiber laser welder requires careful selection of components and a clear understanding of your needs. Whether you choose a water-cooled or air-cooled system, having the right parts and a well-organized setup will ensure your project is a success. Explore the options listed above and start building your custom laser welder today!
